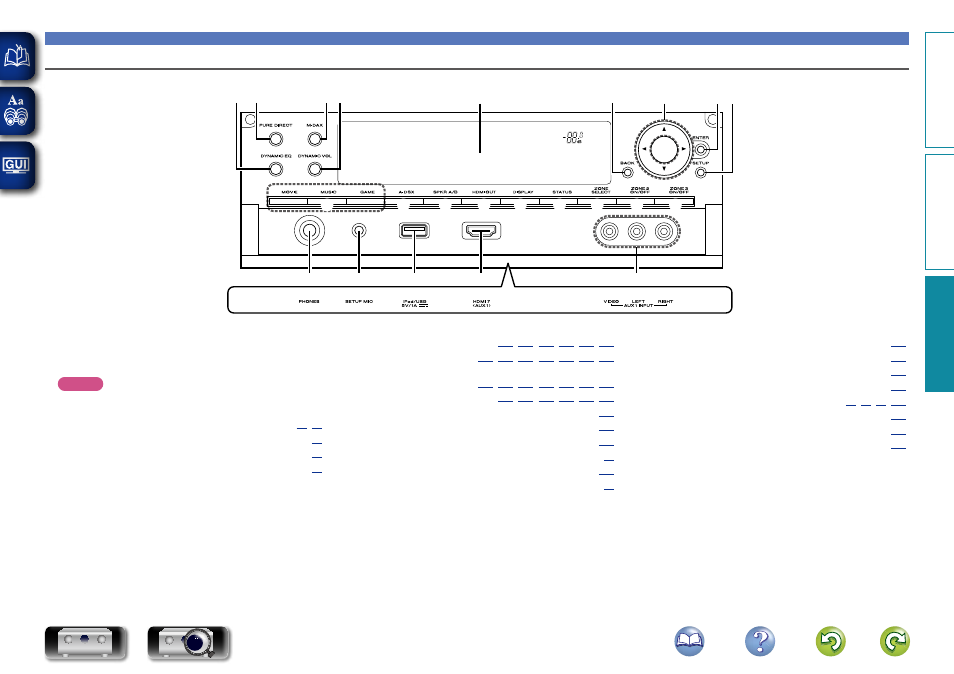

Panel delantero
Con la tapa abierta
Para los botones no explicados aquí, vea la página indicada entre paréntesis ( ).
Q2 Q1
u y
o
Q4 Q3
i
Q0
Q5
Q6
Q7
Q8
Q9
W0
W1
W2
W3
t
q
w
e
r
q
Conector de auriculares (PHONES)
Cuando enchufe unos auriculares a este conector, se dejará de oír
el audio a través de los altavoces conectados.
NOTA
Para evitar pérdida de audición, no suba el volumen excesivamente
cuando use los auriculares.
w
Conector SETUP MIC ························································ (
e
Puerto iPod/USB ····································································· (
r
Conector HDMI7 (AUX1) ························································· (
t
Conectores AUX1 INPUT ························································ (
Q6
Botón Audyssey DSX® (A-DSX) ·········································· (
)
Q7
Botón de cambio de altavoz A/B (SPKR A/B) ····················· (
)
Q8
Botón HDMI OUT ··································································· (
)
Q9
Botón DISPLAY ······································································ (
)
W0
Botón STATUS ···················································· (
)
W1
Botón ZONE SELECT ····························································· (
)
W2
Botón ZONE2 ON/OFF ·························································· (
)
W3
Botón ZONE3 ON/OFF ·························································· (
)
y
Botón SETUP ································· (
,
)
u
Botón ENTER ························ (
,
)
i
Botones de cursor (
uio p)
················································ (
,
)
o
Botón BACK ··································· (
,
)
Q0
Pantalla secundaria ······························································· (
)
Q1
Botón Dynamic Volume (DYNAMIC VOL) ··························· (
)
Q2
Botón/indicador M-DAX ······················································· (
)
Q3
Botón/indicador PURE DIRECT ·············································· (
)
Q4
Botón DYNAMIC EQ ······························································ (
)
Q5
Botones SOUND MODE ·························································· (
)
• Botón MOVIE
• Botón MUSIC
• Botón GAME
