140

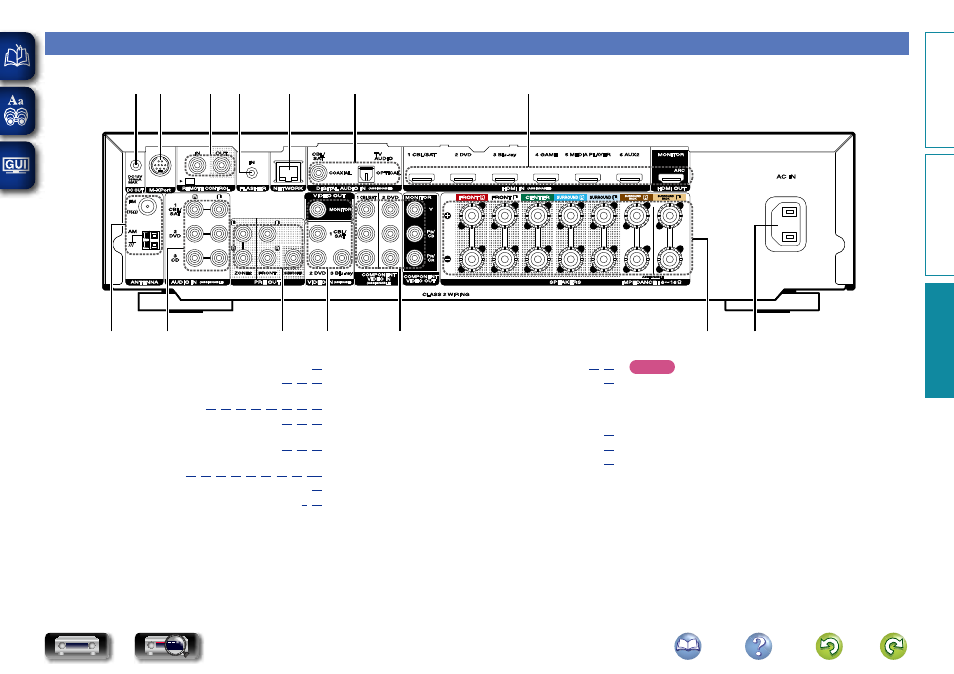

Panel trasero
Consulte la página que se indica entre paréntesis ( ).
Q2
q w e r t y u
o Q1 Q0 Q3 Q4 i
q Terminales de antena FM/AM (ANTENNA) ·························· ( 18 )
w Conectores de audio analógico (AUDIO) ·················· ( 14 , 15 , 17 )
e Conectores PRE OUT
························································ ( 83 , 84 , 85 , 86 , 87 , 88 , 89 , 90 )
r Conectores de vídeo (VIDEO) ····································· ( 13 , 14 , 15 )
t Conectores de vídeo por componentes
(COMPONENT VIDEO) ················································ ( 13 , 14 , 15 )
y Terminales de altavoces (SPEAKERS)
················································ ( 83 , 84 , 85 , 86 , 87 , 88 , 89 , 90 , 101 )
u Entrada de CA (AC IN) ····························································· ( 21 )
i Conectores HDMI ································································ ( 9 , 10 )
o Conectores de audio digital (DIGITAL AUDIO) ··············· ( 13 , 14 )
Q0 Conector de red (NETWORK) ················································· ( 20 )
Q1 Conector FLASHER IN
Se utiliza al emplear un cuadro de control u otro dispositivo similar
para controlar la unidad.
Q2 Conectores de REMOTE CONTROL ······································· ( 93 )
Q3 Conectores de M-XPort ·························································· ( 19 )
Q4 Conectores de DC OUT ··························································· ( 94 )
NOTA
No toque los pines internos de los conectores en el panel trasero.
La descarga electrostática puede ocasionar daños permanentes a la
unidad.
