Panel trasero – Marantz SR6005 Manual del usuario
Página 83
79
Versión básica
Versión avanzada
Versión sencilla
ENGLISH
FRANÇAIS
ESPAÑOL
DEUTSCH
ITALIANO
NEDERLANDS
SVENSKA
Información

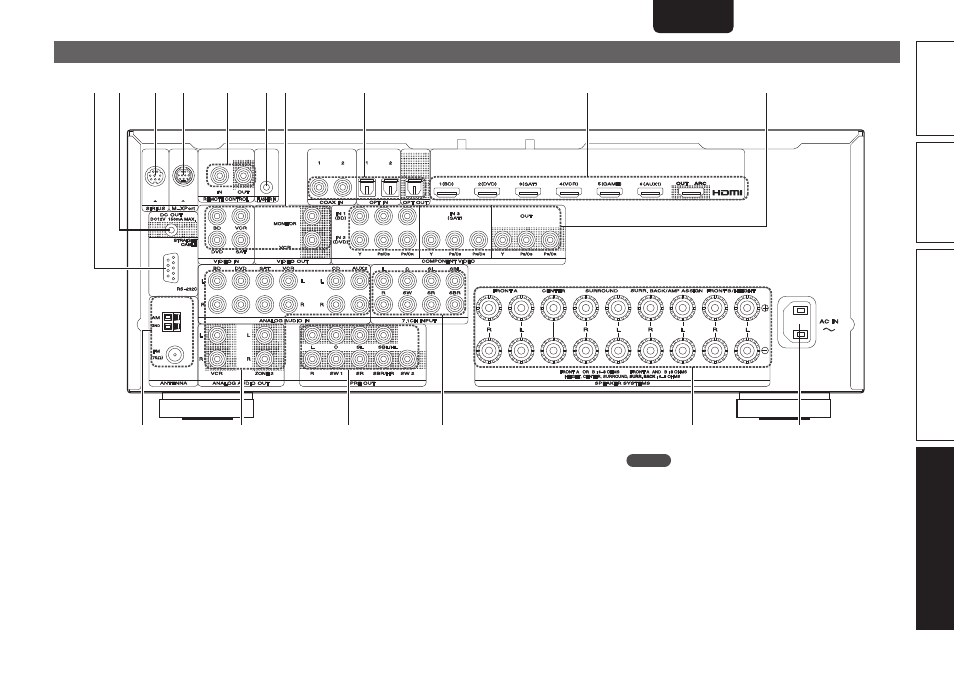

Panel trasero
Consulte la página que se indica entre paréntesis ( ).
q
y
t
e
r
w
Q5
Q6
u
Q0
o
Q1
Q4
Q3
Q2
i
q
Terminales de antena HD Radio ············································ (21)
w
Conectores de audio analógico ·································· (17, 18, 20)
e
Conectores PRE OUT ·············································(6, 22, 36 – 38)
r
Conectores 7.1CH INPUT ························································ (22)
t
Terminales de altavoces ··············································(6, 36 – 38)
y
Toma de AC (AC IN) ·································································· (6)
u
Conectores COMPONENT VIDEO ···································· (17, 18)
i
Conectores HDMI ···································································· (16)
o
Conectores de audio digital ······································· (17, 18, 20)
Q0
Conectores VIDEO ····························································· (17, 18)
Q1
Conector FLASHER IN
Se utiliza cuando se emplea un panel de control o un dispositivo
parecido para controlar esta unidad.
Q2
Conectores REMOTE CONTROL ············································ (40)
Q3
Conector M-XPort ··································································· (21)
Q4
Conector SIRIUS ······································································ (20)
Q5
Conectores DC OUT ································································ (41)
Q6
Conector RS-232C ··································································· (41)
NOTA
No toque los pines internos de los conectores en el panel trasero.
La descarga electrostática puede ocasionar daños permanentes a la
unidad.
