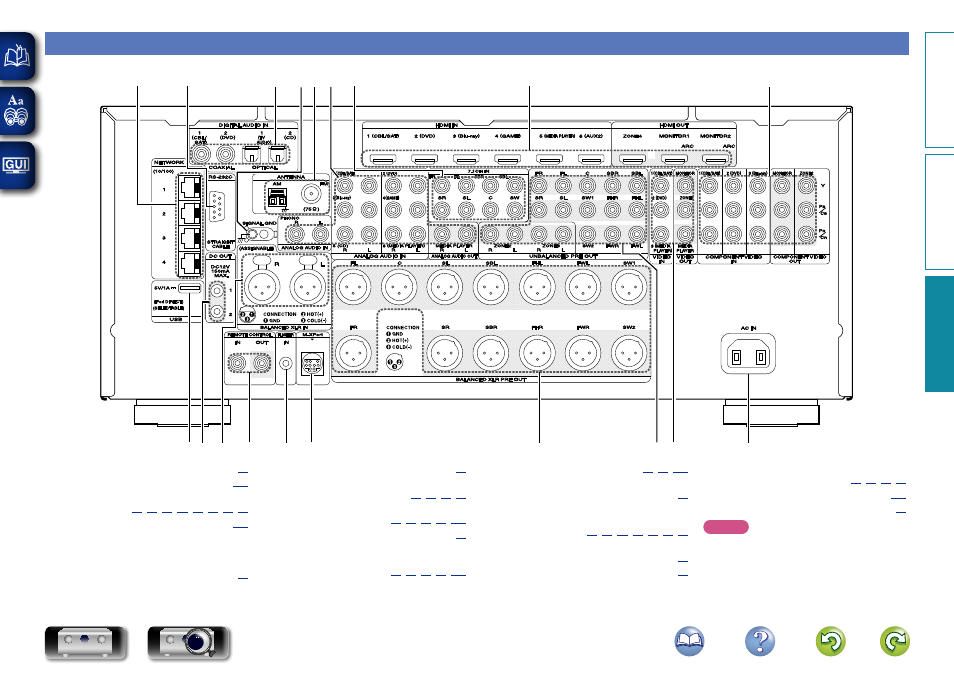

Panel trasero
Consulte la página que se indica entre paréntesis ( ).
q w e r t y u i o Q0
Q1 Q2 Q3 Q4 Q5 Q6 Q7 Q8 Q9
q Puerto USB ················································· ( 24 )
w Conectores DC OUT ································· ( 101 )
e Terminales BALANCED XLR IN
··························· ( 17 , 18 , 19 , 20 , 21 , 22 , 23 , 26 )
r Conectores REMOTE CONTROL ············· ( 100 )
t Conector FLASHER IN
Se utiliza al emplear un cuadro de control u otro
dispositivo similar para controlar la unidad.
y Conector M-XPort ······································ ( 29 )
u Terminales BALANCED XLR PRE OUT ····· ( 32 )
i Terminales UNBALANCED RCA PRE OUT
··················································· ( 31 , 95 , 96 , 97 )
o Conectores vídeo
(VIDEO) ······························ ( 17 , 18 , 19 , 23 , 112 )
Q0 Entrada de CA (AC IN) ································ ( 34 )
Q1 Conectores de vídeo por componentes
(COMPONENT VIDEO)
··········································· (
17 , 18 , 19 , 20 , 112 )
Q2 Conectores HDMI ························· ( 11 , 12 , 112 )
Q3 Conectores de entrada de 7.1 canales
(7.1CH IN) ···················································· ( 30 )
Q4 Conectores de audio analógico
(ANALOG AUDIO)
································· (
18 , 19 , 20 , 21 , 23 , 26 , 27 )
Q5 Terminales de antena FM/AM
(ANTENNA) ················································· ( 28 )
Q6 Terminal SIGNAL GND ······························ ( 27 )
Q7 Conectores de audio digital
(DIGITAL AUDIO IN) ················· ( 17 , 18 , 19 , 26 )
Q8 Conector RC-232C ···································· ( 101 )
Q9 Conector de red (NETWORK) ···················· ( 33 )
NOTA
No toque los pines internos de los conectores en
el panel trasero. La descarga electrostática puede
ocasionar daños permanentes a la unidad.
